MOBILRAM TM 24

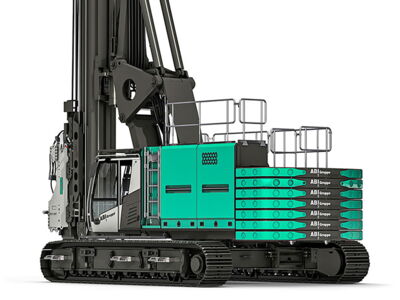

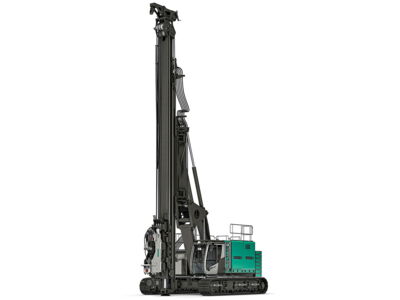

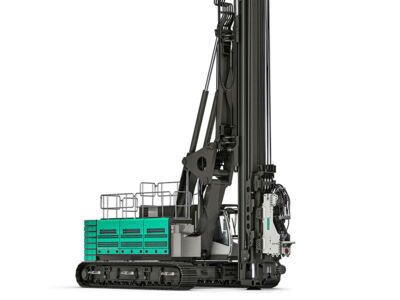

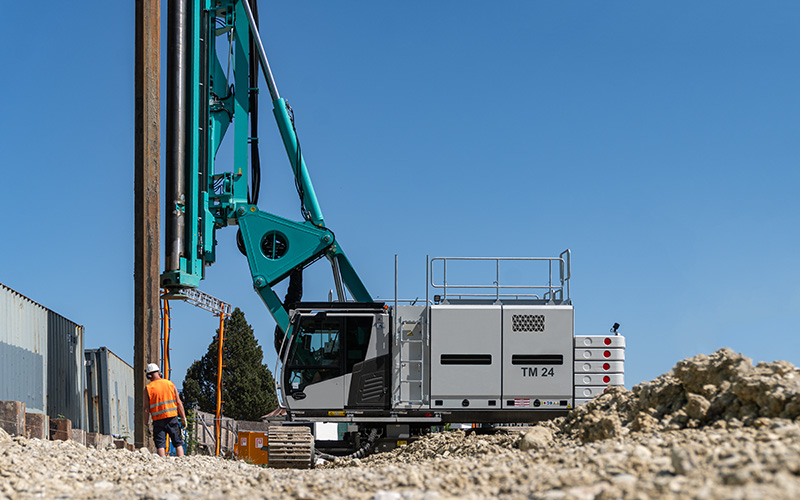

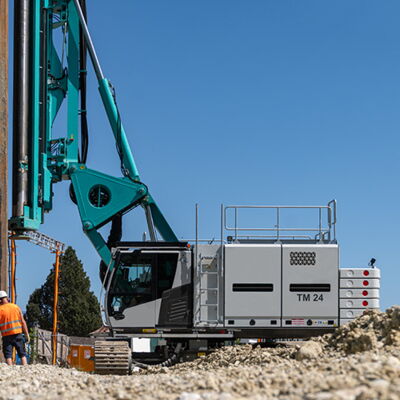

ABI MOBILRAM TM 24 is a telescopic leader mast that has been specially developed for the VDW method in addition to the classic piling methods. The leader mast design and the stable HD-plus kinematics enable effective work with long casings. The TM 24 is mounted on a 470 kW carrier as standard, but can also be supplied on a 563 kW carrier. The large number of compatible attachments covers a wide range of special civil engineering methods.
| Power kW | Version A: 470 / VersionB: 563 |
| Techniques |
Piling and Extracting Drilling Mixing Impacting |
| PDF Downloads |
Stark - Stabil - Vielseitig
All advantages at a glance
- High bending and torsional stiffness
- High load and prestressing forces
- Improved hydraulic efficiency
- Easy change of attachments with Docking-System
- Short set-up times, increased safety
- Compact transport dimensions
| Technical Data | Value | Unit |
|---|---|---|
| Total height: | 29250 | mm |
| Leader mast slewing range: | +/- 90° | left / right |
| Stroke guiding carriage: | 24200 | mm |
| Torque absorption max. | 200 | kNm |
Vibrator
MRZV 30VV
MRZV 32VV
MRZV 36VV
Auger Drive RHP
RHP 150S
Auger Drive VDW
VDW 14070
Auger Drive TMBA
TMBA 2-10000
TMBA 3-10000
TMBA 4-10000
DELMAG Diesel Pile Hammer
D19-52
