MOBILRAM TM 26

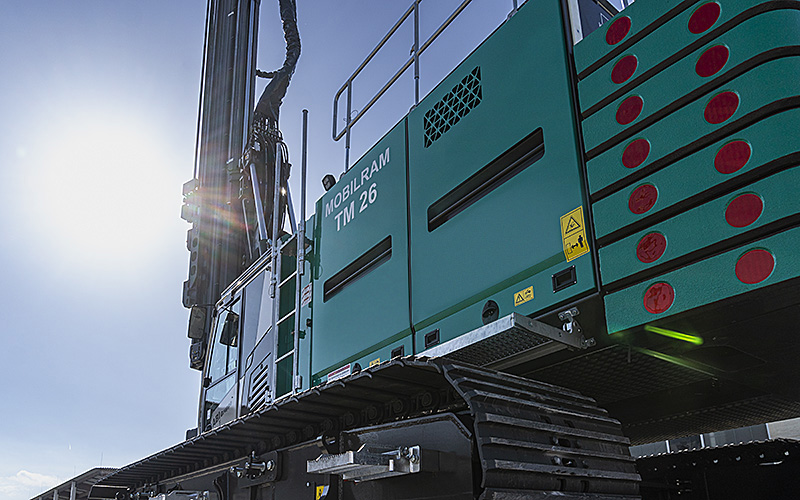

The ABI MOBILRAM TM 26 is the biggest telescopic leader mast with a usable length of approx. 26 metres. The machine is mounted on the SR 45 carrier with HD-plus kinematics. But can also be delivered on carrier SR 35 HD-plus with smaler engine. Due to the large number of compatible attachments, the TM 26 can cover a wide range of special civil engineering methods. It is ideally suited for inserting very long pile elements as well as for drilling and mixing processes.
| Power kW | Version A: 470 / Version B: 563 |
| Techniques |
Piling and Extracting Drilling Mixing Impacting |
| PDF Downloads |
Efficient - Powerful - Versatile
All advantages at a glance
- Quick change of attachments with Docking-System
- Wide range of special civil engineering methods possible
- HD-plus kinematics
- Precise positioning of the leader mast
- Usable weight of up to 20,000 kg
- Patented "mast in mast" design
- High efficiency
- Outstanding stability
- Transport-friendly dimensions
- Stackable counterweights
| Technical Data | Value | Unit |
|---|---|---|
| Total height: | 31280 | mm |
| Leader mast slewing range: | + / - 94° | left / right |
| Stroke guiding carriage: | 26200 | mm |
| Torque absorption max. | 160 | kNm |
Vibrator
MRZV 30VV (B)
MRZV 32VV
MRZV 36VV
Auger Drive RHP
RHP 150S
Auger Drive VDW
VDW 14070
Auger Drive TMBA
TMBA 2-10000
TMBA 3-10000
TMBA 4-10000
DELMAG Diesel Pile Hammer
D19
Piling and Extracting
Drilling
Mixing
Impacting
