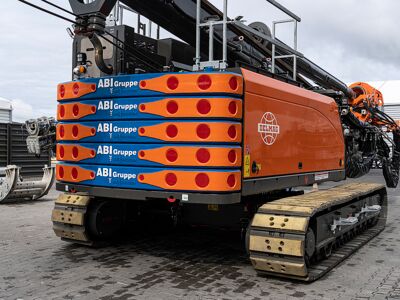

DELMAG RH 14
The DELMAG RH 14 is a compact drill rig for Kelly drilling and drilling with a continuous flight auger. The RH 14 impresses with extremely short set-up times, as the rotary head and the Kelly bar can remain on the machine for transport. The quick set-up is advantageous for inner-city construction sites and when frequently moving the machine from site to site.
Compact - Efficient – Powerful – Low noise
All advantages at a glance
- Compact transport dimensions
- Short set-up times
- Sound-insulated Kelly bars
- Large inclination to the side, front and rear can be realised
- Short leader mast operation
- Hydraulic extendable undercarriage
- Rotary head with from outside exchangeable drive keys
- Optional auger cleaner
| Technical Data | Value | Unit |
|---|---|---|
| Total height: | 17850 | mm |
| Inclination: | 9,5° / 9,5° 5° / 14° |
left / right forward / back |
| Torque Rotary Head at 350 bar: | 0 - 143 | kNm |
Rotary Head
BT 140
Drilling
Mixing
