DELMAG RH 24

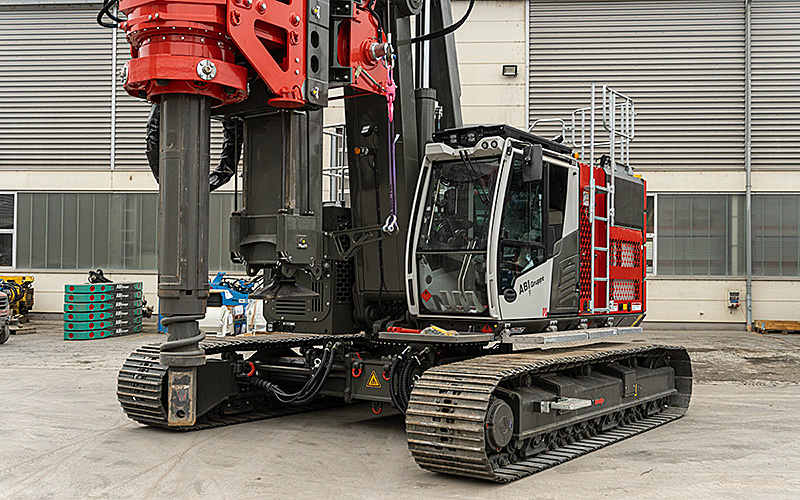

The RH 24 drill rig is highly flexible. In addition to Kelly drilling and drilling with a continuous-flight auger, the RH 24 can also be used for VDW drilling. Transport with the rotary head and Kelly bar attached is a further advantage, ensuring that the drill rig is quickly ready for use on site. For projects with limited headroom, the RH 24 can be converted to a short leader mast version.
Kompact - Flexible - Powerfull
All advantages at a glance
- Compact transport dimensions
- Short set-up times
- Short leader mast operation
- Sound-insulated Kelly bars
- Large inclination to the side, front and rear can be realised
- Hydraulic extendable undercarriage
- Rotary head with from outside exchangeable drive keys
- Optional auger cleaner
| Technical Data | Value | Unit |
|---|---|---|
| Total height: | 20070 | mm |
| Inclination: | 9,5° / 9,5° 4° / 14° |
left / right forward / back |
| Torque Rotary Head at 350 bar: | 248 | kNm |
Rotary Head
BT 240
Auger Drive VDW
VDW 10080
Drilling
Mixing
