DELMAG RH 27

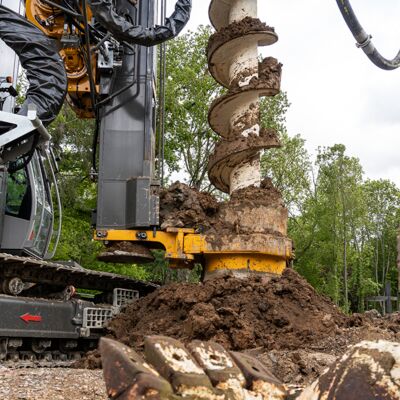

DELMAG RH 27 drill rig is suitable for the production of cased and uncased boreholes as well as for partial and full displacement piles. The machine is a small modification miracle, as it can be converted into four short leader mast versions with different heights. The standard height of just about 23 metres can be reduced to just under 10 metres in the shortest leader mast version. The rotary head is mounted quickly and safely using the Docking-System. The DELMAG RH 27 is an ideal solution for a variety of construction projects.
Powerful - Flexible - Convertible
All advantages at a glance
- Sound-insulated Kelly bars
- Short leader mast operation
- Large inclinations to the side, front and rear
- Hydraulic extendable undercarriage
- Short leader mast foot version for uncased drilling of large diameters
- New rope tensioning device for easier rope installation
- Rotary head with from outside exchangeable drive keys
- Docking-System for quick attachment of rotary head
- Optional auger cleaner
| Technical Data | Value | Unit |
|---|---|---|
| Total height: | 22900 | mm |
| Inclination: | 9° / 9° 4° / 14° |
left / right forward / back |
| Torque Rotary Head at 350 bar: | 270 | kNm |
Rotary Head
BT 270
Auger Drive
VDW 14070
Drilling
Mixing
