DELMAG RH 38

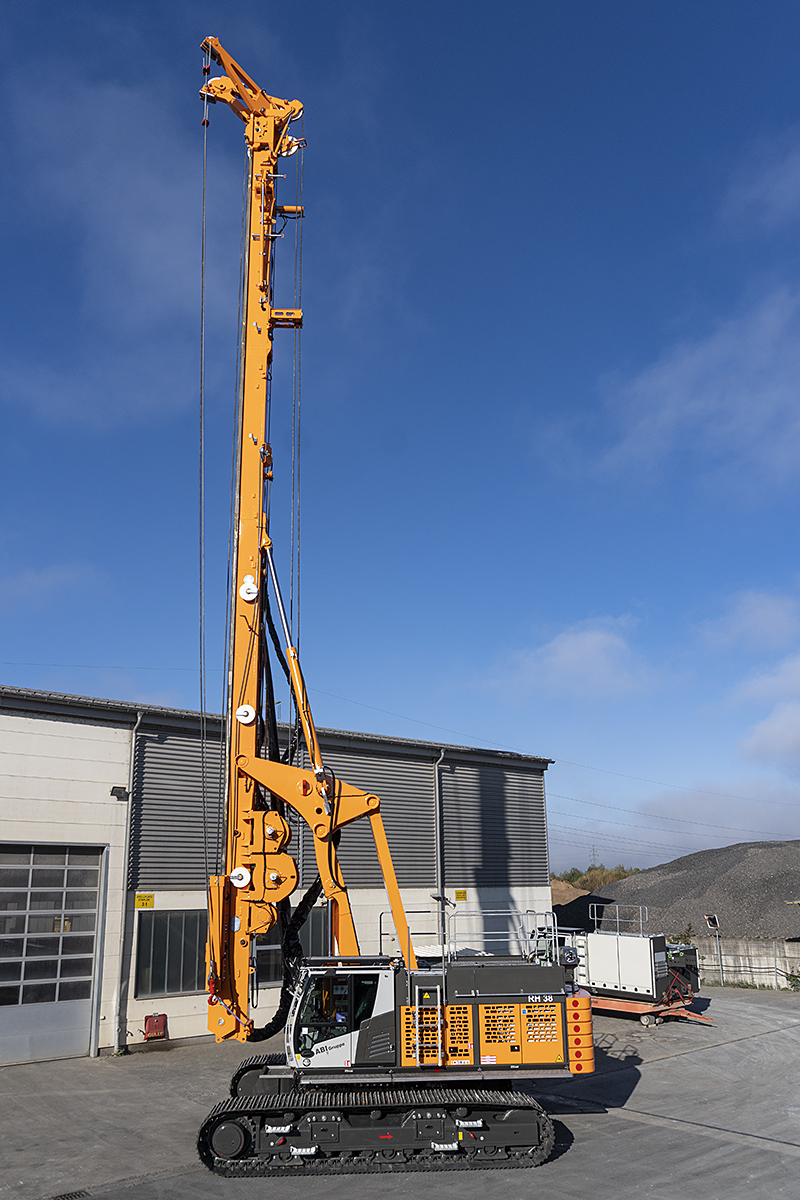

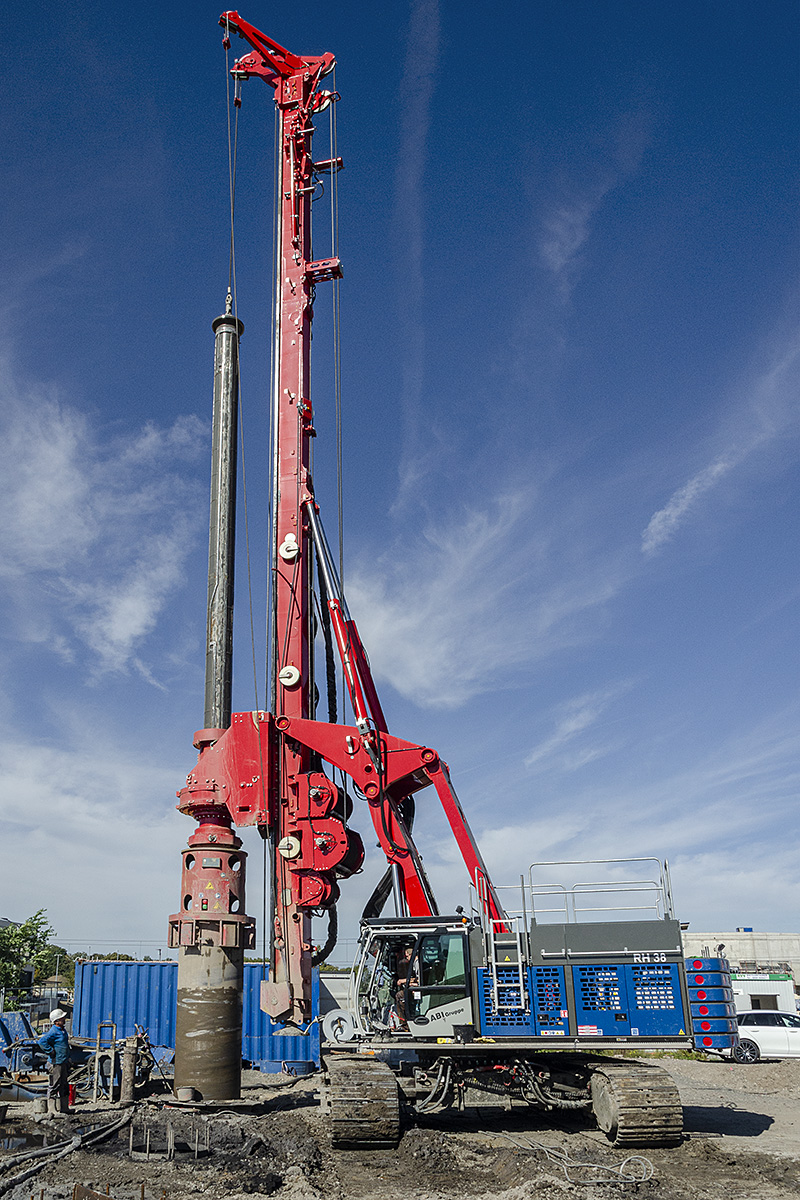

RH 38 is a DELMAG drill rig mounted on the company's own ABI T100 carrier. It is robust, reliable and suitable for the production of cased and uncased boreholes using the Kelly drilling method, for drilling with continuous flight auger, partial and full displacement augers or also for various soil mixing methods. In addition to drilling and mixing methods, the RH 38 can also be used for impacting with a DELMAG diesel pile hammer.
Robust - Versatile - Reliable
All advantages at a glance
- High stability and torsional stiffness
- High crowd forces
- Sound-insulated Kelly bars
- Short leader mast operation
- Large inclinations to the side, front and rear
- Hydraulic extendable undercarriage
- Short leader mast foot version for uncased drilling of large diameters
- Folding leader mast upper section for more compact transport dimensions
- Rotary head with from outside exchangeable drive keys
- New rope tensioning device for simplified rope installation
- Detachable crawler units optional
- Optional auger cleaner
| Technical Data | Value | Unit |
|---|---|---|
| Total height: | 25700 | mm |
| Inclination: | 9,5° / 9,5° | left / right forward / back |
| Torque Rotary Head at 330 bar: | 375 | kNm |
Rotary Head
BT 380
Auger Drive VDW
VDW 200100
DELMAG Diesel Pile Hammer
Drilling
Mixing
Impacting
